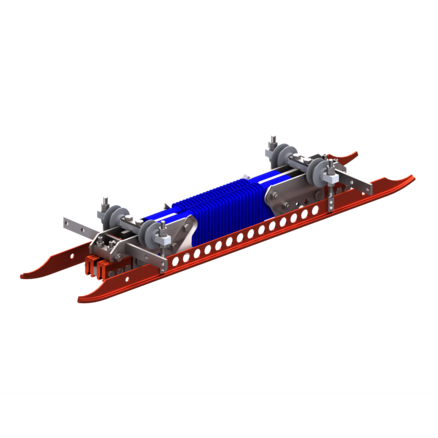

FTND1.5 FTND1.5
Application
Neutral section for tramway and light rail with 2 contact wires
Maximum speed up to 80 km/h
Material
GRP/silicone, Cu, CuNiSi, stainless steel
Contact wire section
80.0 - 150.0 mm²
Contact wire groove
5.6 - 6.9 mm
Creeping distance
450
Length between suspension
610
Length between contact wire
435
Air gap
35
Total length
1000
Recommended service load
max.2x20 kN
Specified mechanical load (SML)
80
Minimum breaking load of the section insulator
100
